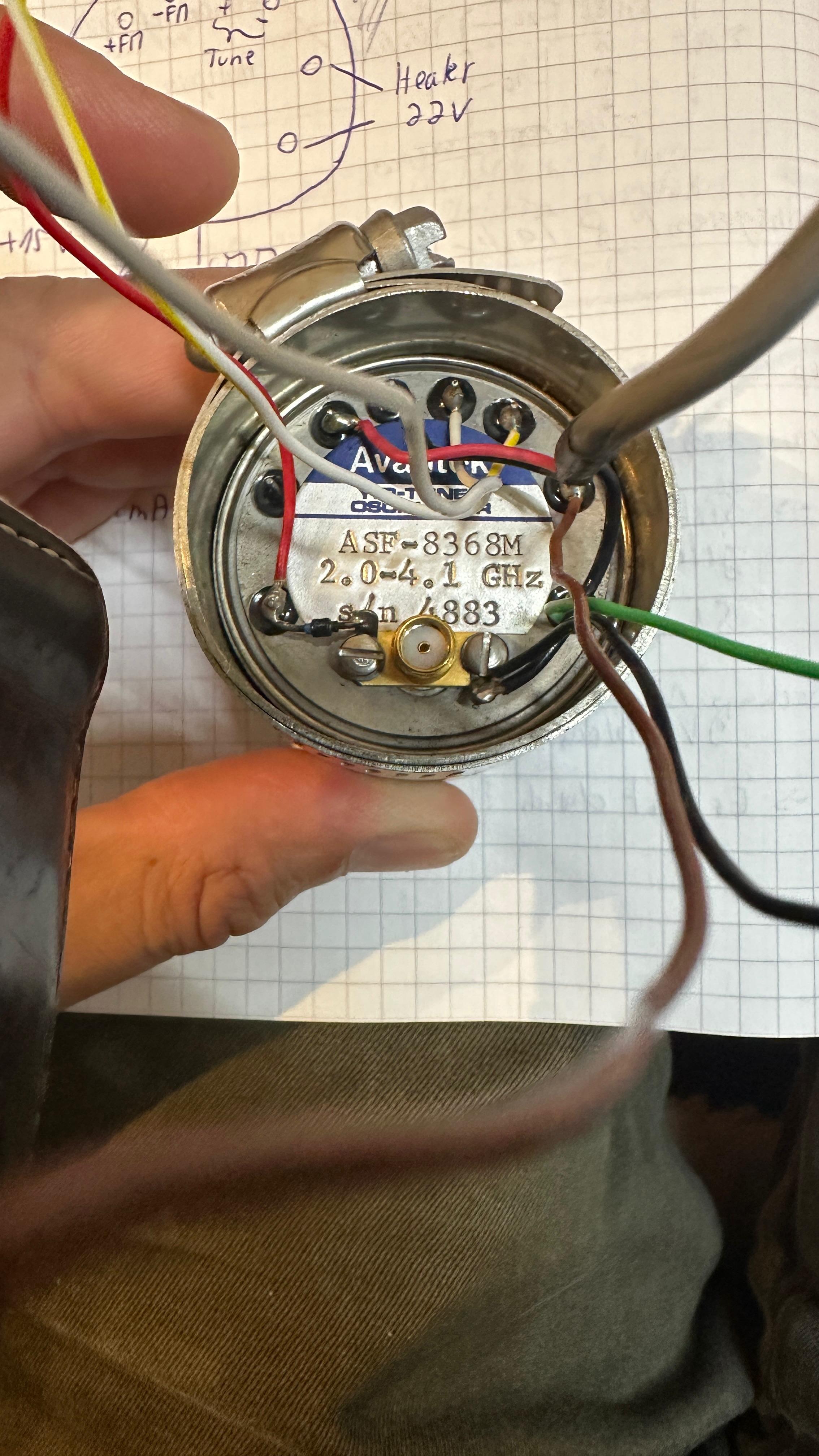

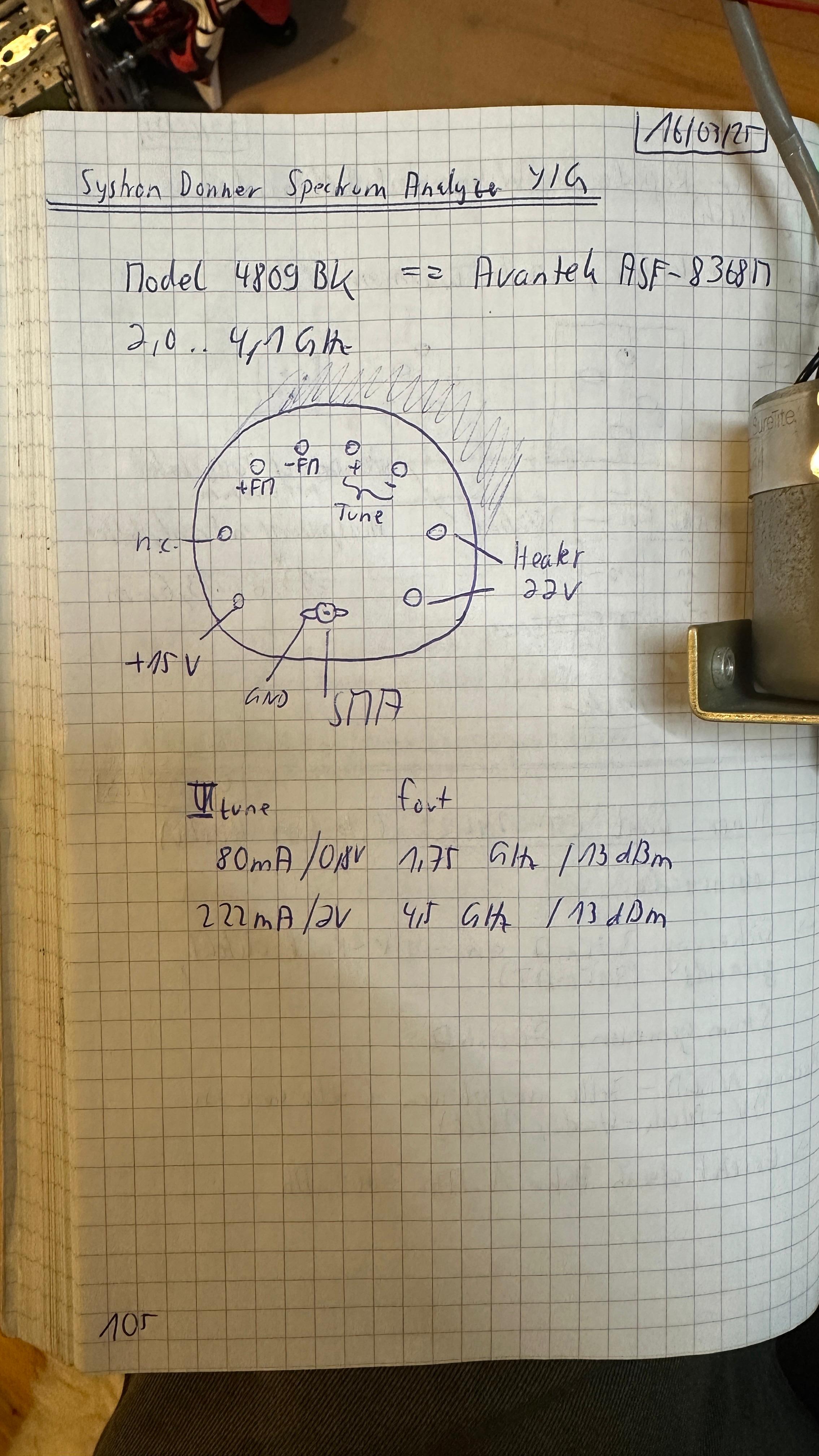

Left from a teardown of an old Systron Donner spectrum analyzer I salvaged this Avantek ASF-8368M Yig Tuned Oscillator, designed to be tunable in the range from 2 to 4.1 GHz. Systron Donner refers to this unit as part number 4809 BK.
Conveniently, this one needs only a +15V power supply, no negative gate bias. The heater was connected to a 22V power rail in the analyzer.

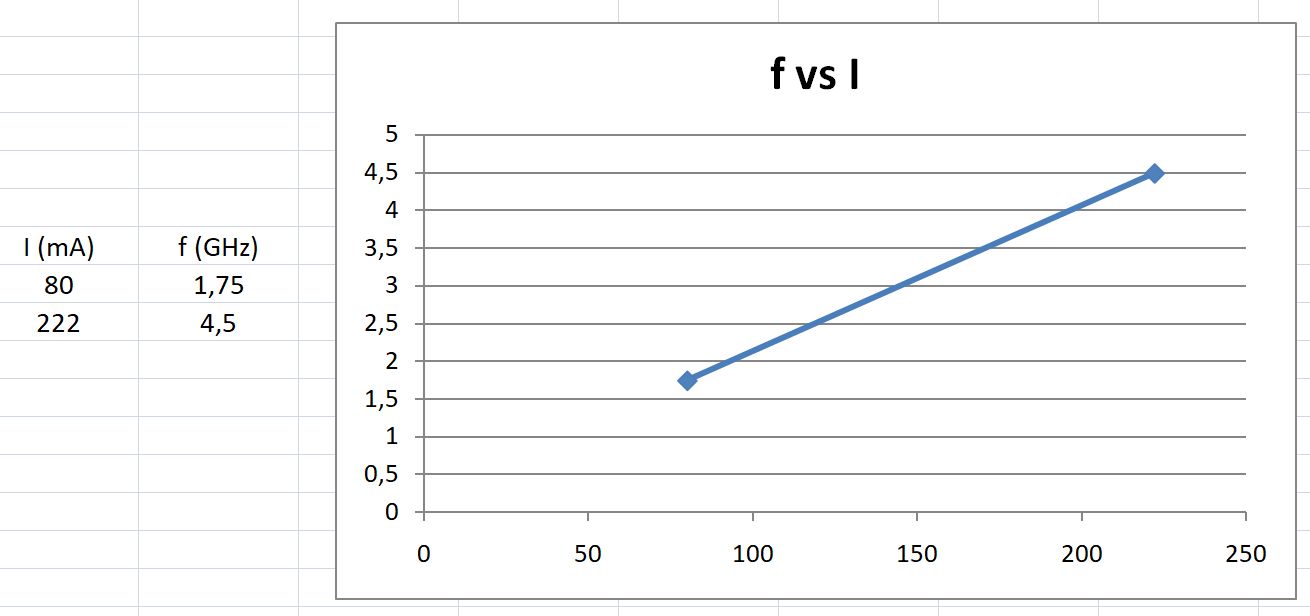

| Tuning range | 2.0 to 4.1 GHz |
| Supply voltage | +15 V |
| Heater voltage | 22 Volts (probably 15 is fine, too) |
| Main coil resistance | 10 ohms |
| Output power | +13 dBm |
